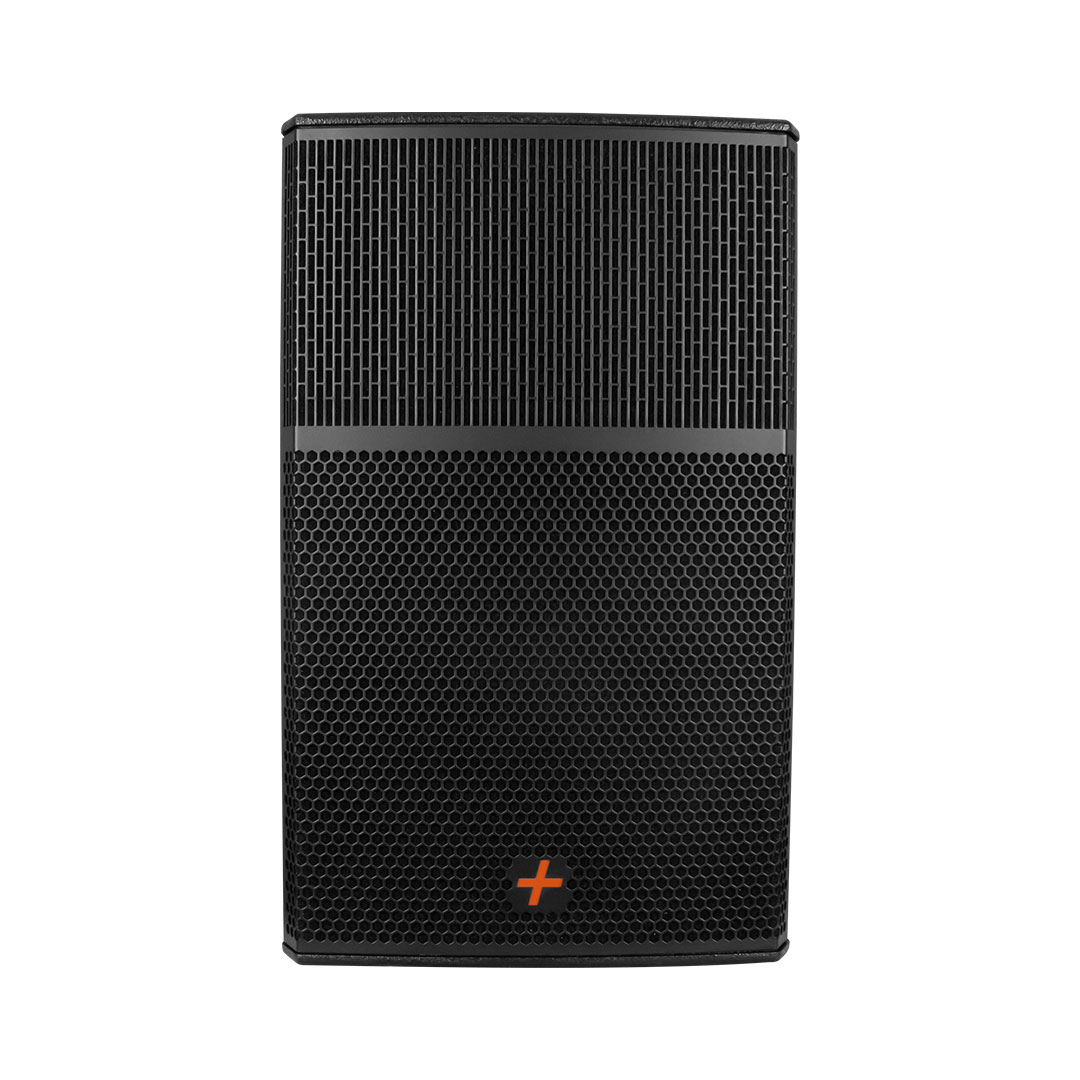

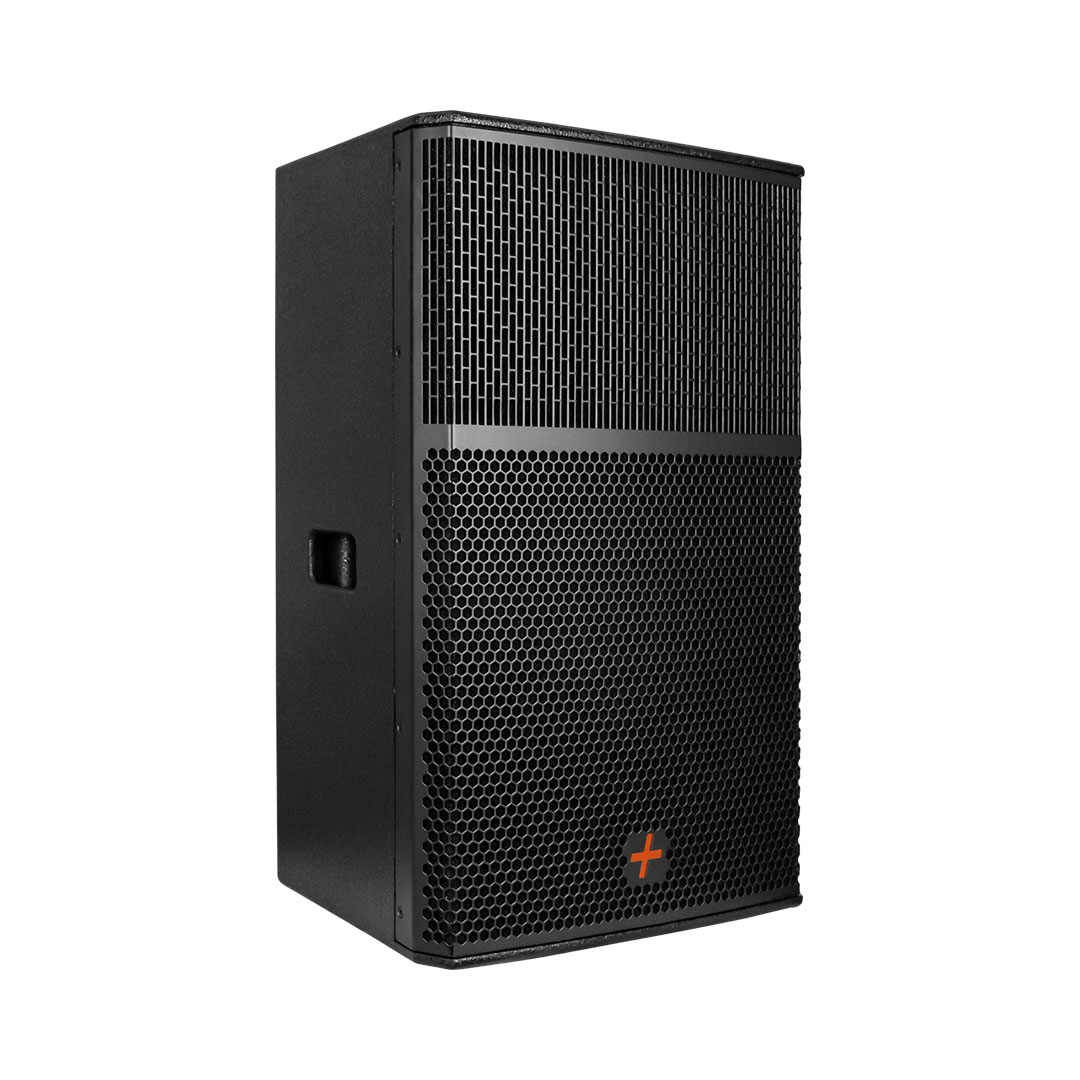

Hybrid+ PK15 UE

Hybrid+ PK15 UE

R8,010.21

4 in stock

Weight 22.7 kg
Dimensions 100 × 100 × 14 cm

15″ Passive two-way speaker

The Hybrid+ PK15UE (Ultimate Edition) is the latest generation of the fast selling PK series. More power, higher SPL and an improved dynamic sounding cabinet is what you can expect from the new PK series.
The PK15UE is a passive 15″, 2-way, birch-plywood enclosed multi-purpose speaker cabinet. It can be used as a FOH full-range speaker for a small to mid-size audience, a fill to the main FOH for larger venues, and as a mid-top cabinet reinforced by sub-bass speakers. It features seven strategically placed M8 fly points for permanent installations and a dual angle 35mm pot for pole-mounting for temporary or rental applications.

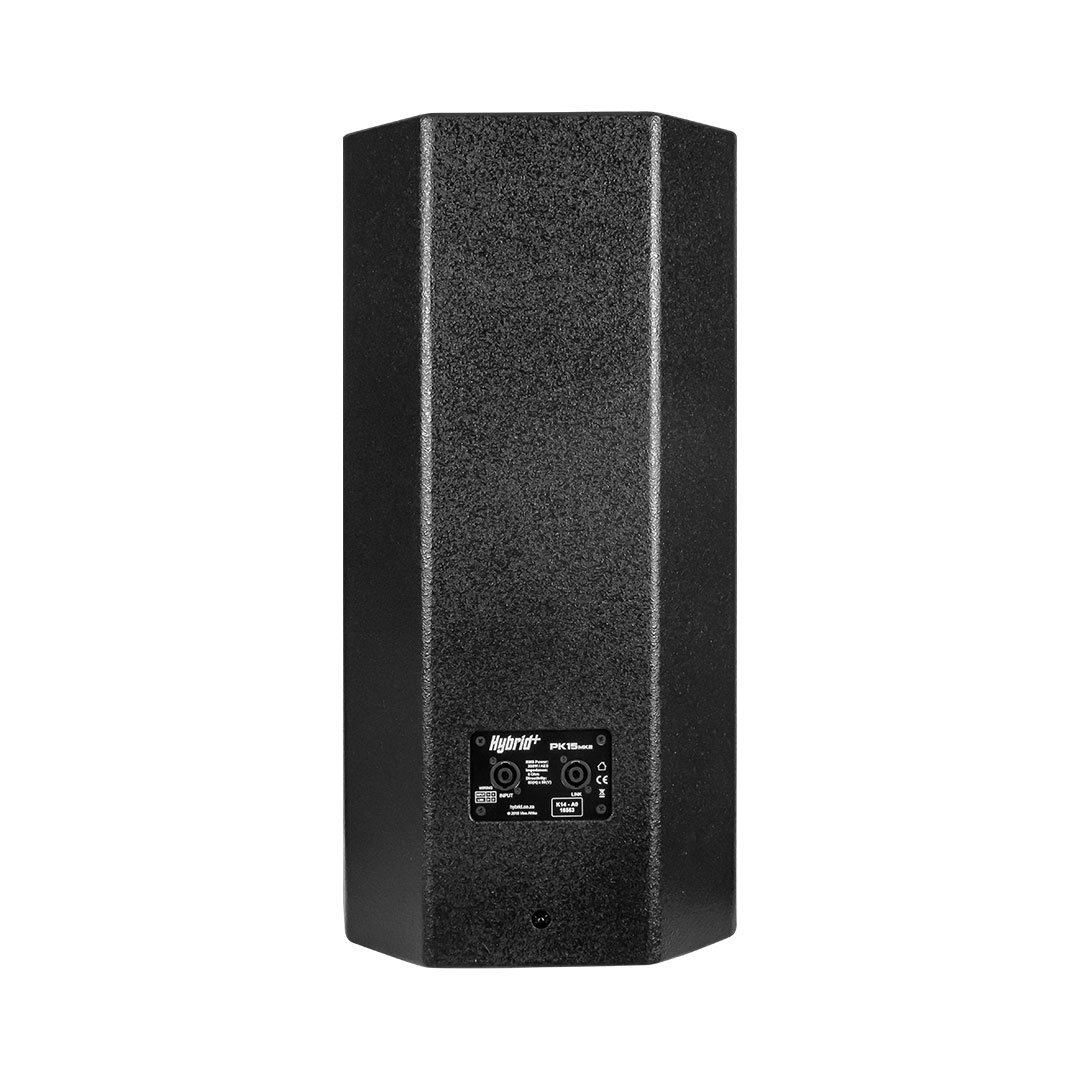

Optimally placed recessed metal cup handles allow for easy handling and mobility. Input and speaker loop-thru connections are made using the two NEUTRIK NL4MP panel mount connectors.

The PK15UE is protected with a 3-coat, water resistant, hardwearing, environmentally friendly UltraTex (USA) black textured paint. Together with the contemporary, two-tone metal grille, it is beautifully finished and adds eye-catching aesthetics to any venue.

Multi-purpose 15″ full range
RMS / Peak Power (AES standard): 500W / 2000W
Nominal impedance: 8 Ohm
Average sensitivity: 98dB /1W /1m
Maximum SPL (calculated): 125dB RMS / 131dB Peak
Frequency response: 47 – 18000Hz
Nominal directivity: 80° (H) x 50° (V) standard, rotatable horn

LF: CELTO Acoustique 15MB458-8
Woofer chassis: Die-cast aluminum
Woofer voice coil diameter: 3″ / 75mm
HF: CELTO Acoustique PCD440B
HF RMS power (AES standard): 50W above 1600Hz
HF exit: 1″ / 25mm
HF voice coil diameter: 1.7″ / 44mm
HF diaphragm material: Keytone polymer

Integrated crossover
LF: 2000Hz, 12dB/oct
HF: 2000Hz, 18dB/oct

Cabinet material: Exterior grade birch plywood
Cabinet finish: UltraTex (USA) texture black coating – 3 coat
Grille: Two-tone, 1.2mm, curved, black powder coated

Floor monitor application: no
Flying hardware: 7 x M8 points
Mounting hardware: Dual angle pot (0° & 10°)
Connectors: 2 x NEUTRIK NL4MP
Cabinet size (HxWxD): 660 x 410 x 415mm
Cabinet weight: 20Kg

HYBRID is a South African brand with over 30 years experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget.
HYBRID+ is our flagship brand, offering features and performance comparable to world renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.
