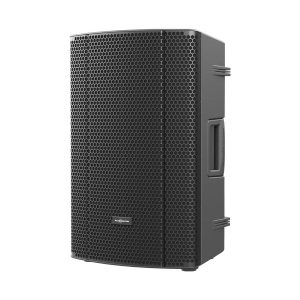

Audiocenter MA15+ Portable Active DSP-Controlled Loudspeaker
R8,736.00Overview
The MA15+ is crafted from a newly developed polypropylene composite material, custom-molded to deliver a stylish appearance, superior performance, and lightweight usability. Integrated with BrainCore™ technology, the MA12+ achieves high integration of the input signal, power amplifier, and DSP module. This optimizes audio energy for maximum efficiency, ensuring the product is both stable and reliable.
Equipped with Bluetooth and TWS (True Wireless Stereo) technology, the MA15+ enables convenient stereo wireless pairing, allowing users to enjoy stable, high – quality sound anytime, anywhere.
The MA15+ can be mounted on a tripod or suspended for use as a main PA speaker and is also suitable for stage monitoring.
Specifications
Type – Portable Active DSP-controlled Loudspeaker
Frequency Response(-10dB) – 45Hz-20kHz
Horizontal Coverage – 90°
Vertical Coverage – 60°
Maximum Calculated SPL/1M (Continuous/Peak) – 128dB/ 134dB
HF Driver – Customized driver, 1.75” voice coil and 1.0”exit
LF Driver – Customized 15” driver, 3.0” voice coil
DSP
Processor – 48kHz signal sampling frequency
Presets – MUSIC，FLAT，SPEECH，W/SUB
AMPLIFIER
Amplifier Circuitry – Class D
Power (RMS standards)- 800W
Peak Power – 1600W
Frequency Response(1W 8Ω 2ch) – 20Hz-20kHz(±0.5dB)
Intermodulation Distortion – ＜0.05%
Total Harmonic Distortion – ＜0.05%
Cooling System – Cooling with fans, air convection
Protection – DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection
Signal Input – Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth
Signal Output – Male XLR mixed output or balanced output
Power Input – IEC power connector
Working Voltage – 100-240V~ (±10%，50/60Hz）
Power consumption (1/8 output power) – 64W
CABINET
Cabinet Material – New polypropylene composite material
Cabinet Color – Black is the default color
Grille – Iron mesh
Handles – 1 side,1 top
Monitor Angle – Symmetrical 45° monitor angle
Hanging Hardwares – M8 screw
Pole Mount – Base hole Φ35mm
Audiocenter MA12 Active DSP-controlled full range loudspeaker
R7,426.00Overview
MA12 full range DSP-controlled speaker, is molded and made from new polypropylene composite material, with fashionable design and supreme performance. Audiocenter BrainCore™ Technology, provides the best sound quality by analyzing and processing input signal, integrated Class D amplifier and DSP module optimally, improving the audio performance of the system significantly. Built-in Bluetooth, link with various smart devices easily.
MA12 can be used as PA speakers and stage monitor. There are multiple ways of mounting and installation, for example, pole mount with a three-feet stand, or hanging installation.
Specifications:
Type – Portable Active DSP-controlled Loudspeaker
Frequency Response(-10dB) – 50Hz-20kHz
Horizontal Coverage – 80°
Vertical Coverage – 50°
Maximum Calculated SPL/1M (Continuous/Peak) – 125dB/131dB
HF Driver – Customized driver, 1.4” voice coil and 1.0”exit
LF Driver – Customized 12” driver, 2.5” voice coil
Processor – 48kHz signal sampling frequency
AMPLIFIER:
Amplifier Circuitry – Class D
Power (RMS standards) – 800W
Peak Power – 1600W
Frequency Response(1W 8Ω 2ch) – 20Hz-20kHz(±0.5dB)
Intermodulation Distortion – ＜0.05%
Total Harmonic Distortion – ＜0.05%
Cooling System – Cooling with fans, air convection
Protection – DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input – 2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Mini jack 3.5
Signal Output – Male XLR
Power Input – IEC power connector
Working Voltage – 100-240V~ (±10%，50/60Hz）
Power consumption (1/8 output power) – 55W
CABINET:
Cabinet Material – New polypropylene composite material
Cabinet Color – Black
Grille – Iron mesh
Handles – 2 side,1 top
Monitor Angle – Symmetrical 45° monitor angle
Hanging Hardwares – M8 screw
Pole Mount – Base hole Φ35mm
Audiocenter CA JAM PACK 12
R12,239.00High-Performance Portable Active Speaker Combo
The 12” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.
Simple setup
With a stylish and attractive design, the CA Jam Pack 12 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
THEARTRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.
AUDIOCENTER CA Jam Pack 12
Package includes
2 x 12″ High-Performance Portable Active Speakers
2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.
SPECIFICATIONS
- Type Single:12” full range DSP-controlled
- Frequency Response (-10dB): 55 Hz – 20 kHz
- Horizontal Coverage (symetrical): 90 °
- Vertical Coverage: 60 °
Maximum Calculated (SPL/1M):
- Continuous 122 dB
- Program 125 dB
- Peak 128 dB
Drivers
- HF: Customized Ferrite Driver, 1.4” Voice Coil, 1.0” exit
- LF: 12” woofer, 2.0” Voice Coil
DSP
- Processor: 48 kHz signal sampling frequency
- Presets: Music, Flat and Speech
Amplifier
- Amplifier: Class D
- Power ( RMS Standard): 800 W
- Peak Power: 1600 W
- Frequency Response (1 W 8 , 2 ch): 20 Hz – 20 kHz (± 0.5 dB)
- Intermodulation Distortion: ≤0.05%
- Total Harmonic Distortion: ≤0.05%
- Cooling: Cooling with fan
Protection
- Short Circuit Protection
- Soft Startup Protection
- Over-Temperature Protection
- Signal Input Connector: 2x Female XLR (Mono jack 6.35); 1x AUX input; 1x Wireless Bluetooth
- Signal Output: Connector Male XLR LINE/MIX output
- Power Input: IEC power connector
- Working Voltage: 100-130 V ~ / 220-240 V ~ (±0%, 50/60 Hz)
- Power Consumption (1/8 Output Power): 55 W
Cabinet
- Material: New PP composite material
- Painting: Plastic cabinet
- Colour: Black
- Grille: Iron Mesh
- Handle: Top x 1, Side x 1
- Monitor Angle: Symmetrical 45 ° monitor angle
- Hanging Hardware: M8 screw
- Pole Mount: Base hole 35mm (Diameter)
- Selectable Accessory: Wall Mount Bracket, Protective Bag, Adjustable Coupling Bar
- Speaker Dimension (W x H x D):381 x 582 x 343 mm
- Carton Dimension (W x H x D): 426 x 665 x 401 mm
- Net Weight: 14 kg
- Gross Weight: 17 kg
Audiocenter CA JAM PACK 15
R13,344.00High-Performance Portable Active Speaker Combo
The 15” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.
Simple setup
With a stylish and attractive design, the CA Jam Pack 15 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
THEARTRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.
AUDIOCENTER CA Jam Pack 15
Package includes
2 x 15″ High-Performance Portable Active Speakers
2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.
SPECIFICATIONS
- Type Single:15” full range DSP-controlled
- Frequency Response (-10dB): 50 Hz – 20 kHz
- Horizontal Coverage (symetrical): 90 °
- Vertical Coverage: 60 °
Maximum Calculated (SPL/1M):
- Continuous 124 dB
- Program 127 dB
- Peak 130 dB
Drivers
- HF: Customised Ferrite Driver, 1.4” Voice Coil, 1.0” exit
- LF: 15” woofer, 2.0” Voice Coil
DSP
- Processor: 48 kHz signal sampling frequency
- Presets: Music, Flat and Speech
Amplifier
- Amplifier: Class D
- Power ( RMS Standard): 800 W
- Peak Power: 1600 W
- Frequency Response (1 W 8 , 2 ch): 20 Hz – 20 kHz (± 0.5 dB)
- Intermodulation Distortion: ≤0.05%
- Total Harmonic Distortion: ≤0.05%
- Cooling: Cooling with fan
Protection
- Short Circuit Protection
- Soft Startup Protection
- Over-Temperature Protection
- Signal Input Connector: 2x Female XLR (Mono jack 6.35); 1x AUX input; 1x Wireless Bluetooth
- Signal Output: Connector Male XLR LINE/MIX output
- Power Input: IEC power connector
- Working Voltage: 100-130 V ~ / 220-240 V ~ (±0%, 50/60 Hz)
- Power Consumption (1/8 Output Power): 64 W
Cabinet
- Material: New PP composite material
- Painting: Plastic cabinet
- Colour: Black
- Grille: Iron Mesh
- Handle: Top x 1, Side x 1
- Monitor Angle: Symmetrical 45 ° monitor angle
- Hanging Hardware: M8 screw
- Pole Mount: Base hole 35mm (Diameter)
- Selectable Accessory: Wall Mount Bracket, Protective Bag, Adjustable Coupling Bar
- Speaker Dimension (W x H x D): 432 x 661 x 387 mm
- Carton Dimension (W x H x D): 476 x 743 x 445 mm
- Net Weight: 17 kg
- Gross Weight: 22 kg
Audiocenter JAM PACK 15 & SUB combo
R35,797.00The system consists of
CA Jam Pack 15
• 2 X 15” High-Performance Portable Active Speakers
• 2 X Speaker Tripod Stands (Converts To A Single Pole, With M20 Thread)
2 X Ma118
18″ Compact Subwoofer, 2000w Bass
3-way Active Combo System
VIEW PRODUCT SPECS
CA Jam Pack 15
CLICK HERE
MA118
CLICK HERE
Audiocenter CA JAM PACK 12 & SUB combo
R34,741.00The system consists of
CA Jam Pack 12
• 2 X 12” High-Performance Portable Active Speakers
• 2 X Speaker Tripod Stands (Converts To A Single Pole, With M20 Thread)
2 X Ma118
18″ Compact Subwoofer, 2000w Bass
3-way Active Combo System
VIEW PRODUCT SPECS
CA Jam Pack 12
CLICK HERE
MA118
CLICK HERE
AUDIOCENTER ASTRA210A FLY FRAME
R4,235.00The AUDIOCENTER Fly Frame for Astra 210A is a precision-engineered rigging accessory built for safe and reliable suspension of your Astra 210A line array system. Constructed from robust, high-grade materials, it ensures stability and accurate alignment during installation.
Ideal for touring, fixed installations, and events where precise speaker positioning is essential, this fly frame can accommodate up to 8 Astra 210A units in a single array, providing flexibility and safety in any professional audio setup.
Key Features:
Compatible with AUDIOCENTER Astra 210A line array speakers
Supports up to 8 units in a single flown array
Heavy-duty construction for maximum strength and safety
Precision rigging points for accurate alignment
Ideal for touring, rental, and fixed installation applications
AUDIOCENTER ARTIST T45 FLY-FRAME
R5,928.00Audiocenter Artist T45 Fly-frame and ground stack frame
Audiocenter GIGRIG2 2300W RMS, 3-way active combo system
R45,811.00The SA315+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA315+ Specifications
Type – Active DSP-controlled full range loudspeaker
Frequency Response(-10dB) – 36Hz-20kHz
Horizontal Coverage – 80°
Vertical Coverage – 50°
Maximum Calculated SPL/1M (Continuous/Peak) – 128dB/134dB
HF Driver – Customized driver, 1.75” voice coil and 1.0”exit
LF Driver – Customized 15” driver, 3.0” voice coil
DSP Processor 48kHz signal sampling frequency
Presets – MUSIC，FLAT，SPEECH，W/SUB
Amplifier Circuitry – Class D
Power (RMS standards) – 1000W
Peak Power – 2000W
Frequency Response(1W 8Ω 2ch) – 20Hz-20kHz(±0.5dB)
Intermodulation Distortion – ＜0.05%
Total Harmonic Distortion – ＜0.05%
Cooling System – Air convection
Protection – DC protection, short circuit protection, overheat protection, input overload protection,
output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input – Female XLR(Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth
Signal Output – Male XLR Balanced Output
Power Input – IEC power connector
Working Voltage – 100-240V~ (±10%,50/60Hz）
Power consumption (1/8 output power) – 64W
CABINET – Cabinet Material
CNC machined plywood – Coating – Durable Polyurea Coating
Cabinet Color – Black is the default color. Contact Audiocenter for customization
Grille – Iron mesh
Handles – 2 side
Monitor Angle – Symmetrical 45° monitoring Angle
Hanging Hardwares – M8 screw
Pole Mount – Base hole Φ35 mm
MA118 Overview
3 low-pass filters (80Hz, 100Hz, 120Hz) in MA118 are available to choose according to different venues and music styles. There is also phase switch. All connectors and function buttons are on the back panel.
MA118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.
MA118 Specifications
Type – Active DSP-controlled Compact Subwoofer
Frequency Response(-10dB) – 30Hz-140Hz
Maximum Calculated SPL/1M (Continuous/Peak) – 128dB/134dB
LF Driver – Customized 18” driver, 4.0” voice coil
DSP Processor – 48kHz signal sampling frequency
Presets – 80Hz, 100Hz, 120Hz
AMPLIFIER
Amplifier Circuitry – Class D
Power (RMS standards) – 1000W
Peak Power – 2000W
Frequency Response(1W 8Ω 2ch) – 20Hz-20kHz(±0.5dB)
Intermodulation Distortion – ＜0.05%
Total Harmonic Distortion – ＜0.05%
Cooling System – Cooling with fans, air convection
Protection – DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input – Female XLR
Signal Output – Male XLR
Power Input – IEC power connector
Working Voltage – 100-130V~/220-240V~(±10%,50/60Hz)
Power consumption (1/8 output power) – 120W
Cabinet Material – CNC machined plywood
Cabinet Color – Black is the default color. Contact Audiocenter for customization
Grille – Iron mesh
Handles – 4 side
Easy set-up & strike-down
Compact, ideal for all mobile applications
Indoor audience of 300 people
2 x Audiocenter SA315+ full range 15″, 1000W
2 x Audiocenter MA118, single 18″, 1000W
Cabling & poles included
Audiocenter XLA210 Combo with S3218A Active Subwoofer
R152,404.00The Audiocenter XLA 102-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).
Features
Customised drivers
Innovative ETE™ waveguide technology for perfect frequency response and even coverage
Newly designed horn for extremely precise dispersion
High end built-in digital controller (DSP) with 96KHz sampling frequency, 2 4bit precision
Class D amplifier
Advanced cooling system
Optimised and compact cabinet design
Solid, moisture-free, CNC-machined birch plywood cabinet
Wide range of accessories for different applications
Active DSP-controlled Subwoofer
Three low-pass filters (80Hz, 100Hz, 120Hz) in the Audiocenter S3218A are available to choose from according to different venues and music styles. There is also a phase switch. All connectors and function buttons are on the back panel. The S3218A subwoofer features a 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.
Features
Maximum SPL 140dB
Customized driver
Built in DSP with 48kHz signal sampling frequency
Class D amplifier
Advanced cooling system in the driver
Optimized, light weight cabinet design for easy usage
Comprehensive accessories for different applications
4 x Audiocenter XLA102DSP
2 x S3218A
2 x Brackets and Bar
2 x 15m XLR
2 x 2m XLR
2 x PSB2
AUDIOCENTER AVANDA212
R55,470.00Overview
AVANDA 212A is a dual 12” three-way active DSP controlled line array loudspeaker. Designed for medium to large-scale sound reinforcement applications and mid-to-high-end fixed installations, it provides a high quality and powerful sound, meeting the requirements of any sound reinforcement application, indoors or outdoors.
The AVANDA 212A achieves a narrow vertical coverage in the high frequency range through the innovative ARROWHEAD™ waveguide technology, providing a clearer sound performance. The 90° horn provides a precise horizontal coverage and ensure that the system delivers an even and smooth sound.
CNC machined birch plywood cabinet, coated with polyurea, is waterproof, wear and high temperature resistant.
Key Features
Perfect integration of Braincore™ technology achieves supreme performance of the speaker system
ARROWHEAD™ waveguide technology
3 presets
High end DSP, with 96KHz signal sampling frequency, with FIR filter
Class D amplifier
Automatically enter sleep mode after 45 minutes without signal input
Advanced temperature control system
Customized driver
Optimized, compact cabinet design
Durable polyurea coating
CNC machined birch plywood cabinet, coated with polyurea, is waterproof, wear and high temperature resistant
Specifications
- Type: Dual 12” three-way active DSP controlled line array loudspeaker
- Frequency Response (-10dB): 60Hz-20kHz
- Horizontal Coverage: 90°
- Vertical Coverage: Splay angle dependent
- Maximum Calculated SPL/1M (Continuous/Peak): 136dB/142dB
- HF: Customized Neodymium driver, 2×3” voice coil,1.4” exit
- MF: Customized 4×6” driver,1.75”voice coil
- LF: Customized 2×12” driver,3.0”voice coil
DSP - Processor: 96kHz signal sampling frequency, FIR filtering
- Presets: 4 Units,8 Units,12 Units
AMPLIFIER - Amplifier Circuitry: Class D
- Power(RMS standards): 2600W
- Peak Power: 5200W
- Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
- Intermodulation Distortion (20Hz-20kHz, half power): ＜0.05%
- Total Harmonic Distortion (20Hz-20kHz，half power): ＜0.05%
- Cooling System: Cooling with fans, air convection
- Protection: DC protection, short circuit protection, overheat protection, input overload protection, output
- overload protection, soft startup protection, overvoltage protection, undervoltage PROTECTION
- Signal Input Connectors: Female XLR
- Signal Output Connectors: Male XLR
- Power Input Connectors: Power connector
- Power Output Connectors: Power connector
- AC Power Operating Range100V-130V~ or 220V-240V~(±10%,50/60Hz)
- Power consumption (1/8 output power): 300W
CABINET - Cabinet Material: Russian birch plywood
- Angle Adjustment: 0°, 1°, 2°, 4°, 6°, 8°, 10°
- Coating: Durable Polyurea Coating
- Cabinet Colour: Black is the default color. Contact Audiocenter for customization
- Grille: Iron mesh
- Handles: 2 side,2 rear
AUDIOCENTER CT3600
R9,661.00Power Amplifier – 2 Channel
The CT3600 amplifier delivers high-performance audio for venues like pubs and live events, offering selectable input sensitivity, speakon/binding post outputs, and multiple operating modes. Advanced protection systems, including soft-start, DC, thermal, and short-circuit safeguards, ensure reliability. Class H amplification minimises distortion, while a 120Hz VLTM crossover enhances sound for subwoofers and compact setups. A tunnel-style heatsink and dual fans provide efficient cooling, ensuring long-term durability with rigorously tested components.
Features
Elegant appearance
Comprehensive protection for reliability
Dynamic sound quality
Exceptional value for money
Modular and ultra-compact design
Easy transport and installation
Specifications
Output power: 8Ω Stereo – 2 x 1200W
4Ω Stereo – 2 x 1800W
8Ω Bridge – 1 x 3600W
A-guard protection: DC protection
Short Circuit
Overheat protection
Limiter protection
Output overload protection
Soft startup protection
Working mode: Stereo, Parallel, Bridge
Crossover (High pass / Low pass): 120Hz, -3dB
Connectors: Input – Male XLR & Female XLR
Output – Speakon + binding Post
Input impedance: Balanced – ≥ 20kΩ
Unbalanced – ≥ 10kΩ
Frequency response (1W 8Ω bridge): 20Hz – 20kHz (± 1dB)
Sensitivity: 0.775V / 1.0V / 1.44V
Maximum input voltage: 16dBu
Crosstalk (1kHz, rated power 8Ω): ≥ 60dB
Signal-to-noise ratio (A-weighted, rated power 8Ω): ≥ 100dB
Damping factor (1kHz & 8Ω): ≥ 300
Intermodulation distortion (60Hz : 7Hz = 4:1, 8Ω): ≤ 0.1%
Total harmonic distortion (8Ω & 20Hz – 20kHz, half power): ≤ 0.05%
Output circuitry: Class H
Rack space: 2U
Cooling system: Back to front venting, mandatory cooling
Dimensions (W x H x D): 483 × 88 × 369mm
Net weight: 20.0kg
AUDIOCENTER CT2400
R7,608.00Power Amplifier – 2 Channel
The CT2400 amplifier delivers high-performance audio for venues like pubs and live events, offering selectable input sensitivity, speakon/binding post outputs, and multiple operating modes. Advanced protection systems, including soft-start, DC, thermal, and short-circuit safeguards, ensure reliability. Class H amplification minimises distortion, while a 120Hz VLTM crossover enhances sound for subwoofers and compact setups. A tunnel-style heatsink and dual fans provide efficient cooling, ensuring long-term durability with rigorously tested components.
Features
Elegant appearance
Comprehensive protection for reliability
Dynamic sound quality
Exceptional value for money
Modular and ultra-compact design
Easy transport and installation
Specifications
Output power: 8Ω Stereo – 2 x 800W
4Ω Stereo – 2 x 1200W
8Ω Bridge – 1 x 2400W
A-guard protection: DC protection
Short Circuit
Overheat protection
Limiter protection
Output overload protection
Soft startup protection
Working mode: Stereo, Parallel, Bridge
Crossover (High pass / Low pass): 120Hz, -3dB
Connectors: Input – Male XLR & Female XLR
Output – Speakon + binding Post
Input impedance: Balanced – ≥ 20kΩ
Unbalanced – ≥ 10kΩ
Frequency response (1W 8Ω bridge): 20Hz – 20kHz (± 1dB)
Sensitivity: 0.775V / 1.0V / 1.44V
Maximum input voltage: 16dBu
Crosstalk (1kHz, rated power 8Ω): ≥ 60dB
Signal-to-noise ratio (A-weighted, rated power 8Ω): ≥ 100dB
Damping factor (1kHz & 8Ω): ≥ 300
Intermodulation distortion (60Hz : 7Hz = 4:1, 8Ω): ≤ 0.1%
Total harmonic distortion (8Ω & 20Hz – 20kHz, half power): ≤ 0.05%
Output circuitry: Class H
Rack space: 2U
Cooling system: Back to front venting, mandatory cooling
Dimensions (W x H x D): 483 × 88 × 369mm
Net weight: 14.5kg
AUDIOCENTER CT1200
R5,970.00Power Amplifier – 2 Channel
The CT1200 amplifier delivers high-performance audio for venues like pubs and live events, offering selectable input sensitivity, speakon/binding post outputs, and multiple operating modes. Advanced protection systems, including soft-start, DC, thermal, and short-circuit safeguards, ensure reliability. Class H amplification minimises distortion, while a 120Hz VLTM crossover enhances sound for subwoofers and compact setups. A tunnel-style heatsink and dual fans provide efficient cooling, ensuring long-term durability with rigorously tested components.
Features
Elegant appearance
Comprehensive protection for reliability
Dynamic sound quality
Exceptional value for money
Modular and ultra-compact design
Easy transport and installation
Specifications
Output power: 8Ω Stereo – 2 x 400W
4Ω Stereo – 2 x 600W
8Ω Bridge – 1 x 1200W
A-guard protection: DC protection
Short Circuit
Overheat protection
Limiter protection
Output overload protection
Soft startup protection
Working mode: Stereo, Parallel, Bridge
Crossover (High pass / Low pass): 120Hz, -3dB
Connectors: Input – Male XLR & Female XLR
Output – Speakon + binding Post
Input impedance: Balanced – ≥ 20kΩ
Unbalanced – ≥ 10kΩ
Frequency response (1W 8Ω bridge): 20Hz – 20kHz (± 1dB)
Sensitivity: 0.775V / 1.0V / 1.44V
Maximum input voltage: 16dBu
Crosstalk (1kHz, rated power 8Ω): ≥ 60dB
Signal-to-noise ratio (A-weighted, rated power 8Ω): ≥ 100dB
Damping factor (1kHz & 8Ω): ≥ 300
Intermodulation distortion (60Hz : 7Hz = 4:1, 8Ω): ≤ 0.1%
Total harmonic distortion (8Ω & 20Hz – 20kHz, half power): ≤ 0.05%
Output circuitry: Class H
Rack space: 2U
Cooling system: Back to front venting, mandatory cooling
Dimensions (W x H x D): 483 × 88 × 369mm
Net weight: 12.5kg
AUDIOCENTER P48
R15,480.00Professional Audio Processor
The Audiocenter P48 Professional Audio Processor integrates a variety of DSP functions, including compressors, crossovers, dynamic equalizers, delays, equalizers, input/output FIR filters, phase filters, and mixing matrices. With intuitive PC software, users can easily tune and monitor their audio, ensuring the efficient construction and flexible operation of professional audio amplification systems.
Features
Innovative BrainCore™ technology to improve the audio performance of the system
High-performance AD/DA converter chips
32-bit floating-point digital processor
3-band dynamic EQ (DEQ) on each channel
2000ms Ultra-Long Delay, Precision to 0.01ms
Simplified Installation and Cost Reduction
Features
Ultimate Sound Quality, Superior Performance
Equipped with high-performance AD/DA converter chips, featuring a 24bit 96kHz sampling rate, it accurately captures sound details, providing
pure sound quality and efficient performance to meet professional audio requirements.
High-performance DSP Processing Technology
The 32-bit floating-point digital processor optimizes signal processing, with 3 bands of dynamic equalization (DEQ) on each channel that
automatically adjust the frequency response. The combination of IIR and FIR filters preserves the original characteristics of the audio signal,
generating precise linear phase curves, providing a balanced, natural, and transparent audio experience.
2000ms Ultra-Long Delay, Precision to 0.01ms
The system allows for input and output delays of up to 2000ms, with a precision of 0.01ms. This ensures precise synchronization in any audio
application.
Simplified Installation and Cost Reduction
Transmitting audio signals via the network reduces reliance on traditional audio wiring, simplifying the installation process and reducing
construction costs and complexity.
Specifications
Sampling Rate: 96kHz
AD/DA Converter: 24bit
Audio System Delay: <2.1ms (analogue input – analogue output)
Input (Analogue): 4-channel electronically balanced
Input (AES): 4-channel AES input
Input Interface: 4 x female XLR
Output (Analogue): 8-channel electronically balanced
Output Interface: 8 x Male XLR
DSP (EQ): EQ types: PEQ; high/low shelf; all pass; all pass 2; variQ high/low pass; elliptic high/low pass; high/low pass; band pass; notch
DSP (DEQ): Each input with a 3-band DEQ
DSP (Delay): Input delay: each channel 2000ms; Output delay: each channel 20000ms
DSP (FIR): Input FIR: each channel 512Taps (@48kHz): Output FIR: each channel 512Taps (@48kHz)
DSP (Crossover): Butterworth; Linkwitz-Riley; Bessel: 6dB /oct to 48dB / oct
DSP (Limiter): Compressor + limiter
Input Impedance: ≥10kΩ
Output Impedance: <100Ω
Maximum Input Level: ≥+20dBu
Maximum Output Level: ≥+20dBu
Frequency Response: ±0.3dB, 20Hz-20kHz
S/N Ratio: ≥113dB @1kHz, A weighted
THD+N: ≤0.002% @1kHz, 0dBu, A weighted
Crosstalk: ≥105dB @1kHz
Connection Type: USB / RS232 / TCP / IP
AC Power Operating Range: 100-240V / (±10%, 50-60Hz)
Power Consumption: <20W
Rack Space: 1U
Dimensions (W x H x D): 483 x 44 x 265mm
Audiocenter SA310+
R7,717.00The SA310+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA310+ offers flexible installation options, with both ceiling suspension and pole mount, adapting to various environments. With its exceptional sound quality and user-friendly operations, the SA310+ meets the demands of both professional and home users for a high-quality audio experience.
Type: Active DSP-controlled full range loudspeaker
Frequency Response(-10dB): 52Hz-20kHz
Horizontal Coverage: 80°
Vertical Coverage: 50°
Maximum Calculated SPL/1M (Continuous/Peak): 124dB/130dB
HF Driver: Customized driver, 1.75” voice coil and 1.0” exit
LF Driver: Customized 10” driver, 2.0” voice coil
DSP
Processor: 48kHz signal sampling frequency
Presets: MUSIC，FLAT，SPEECH，W/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1000W
Peak Power: 2000W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion: ＜0.05%
Total Harmonic Distortion: ＜0.05%
Cooling System: Air convection
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input: Female XLR (Mono jack 6.35), 3.5mm Jack Input, Wireless Bluetooth
Signal Output: Male XLR Balanced Output
Power Input: IEC power connector
Working Voltage: 100-240V~ (±10%,50/60Hz）
Power consumption (1/8 output power): 49W
CABINET
Cabinet Material: CNC machined plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black is the default colour. Contact Audiocenter for customization
Grille: Iron mesh
Handles: 1 top
Monitor Angle : 45° monitoring Angle
Hanging Hardware: M8 screw
Pole Mount: Base hole Φ35 mm
Speaker Dimension (W×H×D): 302x548x325 mm
Carton Dimension (W×H×D): 365×605×389 mm
Net Weight: 14.0 kg
Shipping Weight: 16.0 kg
Audiocenter SA312+
R8,880.00The SA312+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA312+ offers flexible installation options, with both ceiling suspension and pole mount, adapting to various environments. With its exceptional sound quality and user-friendly operations, the SA312+ meets the demands of both professional and home users for a high-quality audio experience.
Type: Active DSP-controlled full range loudspeaker
Frequency Response(-10dB): 46Hz-20kHz
Horizontal Coverage: 80°
Vertical Coverage: 50°
Maximum Calculated SPL/1M (Continuous/Peak): 126dB/132Db
HF Driver: Customized driver, 1.75” voice coil and 1.0” exit
LF Driver: Customized 12” driver, 2.5” voice coil
DSP
Processor: 48kHz signal sampling frequency
Presets: MUSIC，FLAT，SPEECH，W/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1000W
Peak Power: 2000W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion: ＜0.05%
Total Harmonic Distortion: ＜0.05%
Cooling System: Air convection
Protection: DC protection, short circuit protection, overheat protection, input overload
protection, output overload protection, soft startup protection, overvoltage protection,
undervoltage protection
Signal Input: Female XLR (Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth
Signal Output: Male XLR Balanced Output
Power Input: IEC power connector
Working Voltage: 100-240V~ (±10%,50/60Hz）
Power consumption (1/8 output power): 55W
CABINET
Cabinet Material: CNC machined plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black is the default colour. Contact Audiocenter for customization
Grille: Iron mesh
Handles: 2 side
Monitor Angle: Symmetrical 45° monitoring Angle
Hanging Hardwares: M8 screw
Pole Mount: Base hole Φ35 mm
Speaker Dimension (W×H×D): 363x626x375 mm
Carton Dimension (W×H×D): 435×693×448 mm
Net Weight: 18.0 kg
Shipping Weight: 20.0 kg
Audiocenter SA315+
R9,960.00The SA315+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA315+ offers flexible installation options, with both ceiling suspension and pole mount, adapting to various environments. With its exceptional sound quality and user-friendly operations, the SA315+ meets the demands of both professional and home users for a high-quality audio experience.
Type: Active DSP-controlled full range loudspeaker
Frequency Response(-10dB): 36Hz-20kHz
Horizontal Coverage: 80°
Vertical Coverage: 50°
Maximum Calculated SPL/1M (Continuous/Peak): 128dB/134dB
HF Driver: Customized driver, 1.75” voice coil and 1.0” exit
LF Driver: Customized 15” driver, 3.0” voice coil
DSP
Processor: 48kHz signal sampling frequency
Presets: MUSIC，FLAT，SPEECH，W/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1000W
Peak Power: 2000W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion: ＜0.05%
Total Harmonic Distortion: ＜0.05%
Cooling System: Air convection
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input: Female XLR (Mono jack 6.35), 3.5mm Jack Input, Wireless Bluetooth
Signal Output: Male XLR Balanced Output
Power Input: IEC power connector
Working Voltage: 100-240V~ (±10%,50/60Hz）
Power consumption (1/8 output power): 64W
CABINET
Cabinet Material: CNC machined plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black is the default colour. Contact Audiocenter for customization
Grille: Iron mesh
Handles: 2 side
Monitor Angle : Symmetrical 45° monitoring Angle
Hanging Hardwares: M8 screw
Pole Mount: Base hole Φ35 mm
Speaker Dimension (W×H×D): 446x738x458 mm
Carton Dimension (W×H×D): 518×805×531 mm
Net Weight: 24.0 kg
Shipping Weight: 27.5 kg
Audiocenter Astra 210A
R23,311.00OVERVIEW
The ASTRA 210A dual 10-inch two-way active line array is specially designed for small to medium-scale sound reinforcement and fixed install applications.
With the innovative ETETM waveguide, the ASTRA 210A achieves even high-frequency diffusion, delivering a clear and powerful sound. The horizontal 90 degree horn provides precise coverage to ensure the system output is uniform, full, and smooth, allowing the audience an exceptional auditory experience.
The cabinet is made from high-quality CNC processed plywood with polyurea coating, making it waterproof, wear-resistant and heat-resistant. The compact symmetrical cabinet structure not only ensures the stability and practicality of the cabinet, but also effectively reduces its volume and weight, enabling easier installation and transportation. The ASTRA 210A stands out as an ideal choice for small to medium-scale sound reinforcement applications with its excellent sound quality, stability and flexibility.
FEATURES
Perfect integration of BrainCore™ technology achieves supreme performance of the loudspeaker system.
3 presets
High end DSP, with 96kHz signal sampling frequency, with FIR filter
Class D amplifier
Customized Audiocenter driver
Optimized, compact cabinet design
Durable polyurea coating is waterproof, wear and high temperature resistant.
CNC machined plywood cabinet
SPECFICATIONS
Type: Dual 10” two-way active DSP controlled line array loudspeaker
Frequency Response (-10dB): 40Hz-20kHz
Horizontal Coverage: 90°
Vertical Coverage: Splay angle dependent
Maximum Calculated SPL/1M (Continuous/Peak): 126dB/132dB
HF: Customized driver, 2×1.75” voice coil,1.0” exit
LF: Customized 2×10” driver, 2.5” voice coil
DSP
Processor: 96kHz signal sampling frequency, FIR filtering
Presets : LINEAR,2 Units, W/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1600W
Peak Power: 3200W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion (20Hz-20kHz, half power): ＜0.05%
Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω): ＜0.05%
Cooling System: Cooling with fans
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input Connectors: Female XLR
Signal Output Connectors: Male XLR
Power Input Connectors: Power connector
Power Output Connectors: Power connector
AC Power Operating Range: 100V-130V~ or 220V-240V~(±10%,50/60Hz)
Power consumption (1/8 output power): 117W
CABINET
Cabinet Material: CNC made of excellent wood
Angle Adjustment: 0°,2°,4°,6°,8°,10°
Coating: Durable Polyurea Coating
Cabinet Colour: Black
Grille: Iron mesh
Handles: 2 side,2 rear
Optional Accessories: Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly
Speaker Dimension (W×H×D): 760×295×412mm
Carton Dimensions (W×H×D): 899×374×595mm
Net Weight: 30.0kg
Shipping Weight: 34.0kg
Audiocenter AVANDA 218A
R60,531.00OVERVIEW
The AVANDA 218A is an active subwoofer specifically designed for mobile applications, rental companies and fixed installations; wherever exceptional sound quality is needed.
It features two custom-designed 18-inch neodymium drivers with a 4-inch voice coil.
The AVANDA 218A seamlessly complements Audiocenter’s full-range loudspeakers, expanding the frequency response range. They deliver powerful, impactful low-end reinforcement.
With its modular design, the AVANDA 218A offers high flexibility, allowing a cardioid subwoofer pattern and large-scale speaker array configurations. It allows for suspension of up to 12 speakers, providing sound engineers with great convenience and flexibility for installation.
FEATURES
Long Excursion
High power handling
Low distortion
3 presets
High end DSP, with 96kHz signal sampling frequency
Enters sleep mode automatically if without signal input for 45mins
Class D amplifier
Advanced cooling system in the driver
Multilayer baltic birch plywood
Durable polyurea coating
Support hanging installation
SPECFICATIONS
Type: Active DSP-controlled Compact Subwoofer
Frequency Response (-10dB): 27Hz-110Hz
Maximum Calculated SPL/1M (Continuous/Peak): 138dB/144dB
LF Driver: Customized 2×18” Neodymium driver, 4.0” voice coil
DSP
Processor: 96kHz signal sampling frequency
Presets : 80Hz, 100Hz, Cardioid
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards: 4000W
Peak Power: 8000W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±1dB)
Intermodulation Distortion: ＜0.1%
Total Harmonic Distortion: ＜0.1%
Cooling System: Cooling with fans, air convection
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input: Female XLR
Signal Output: Male XLR
Power Input: Power connector
Working Voltage: 100-130V~/220-240V~(±10%,50/60Hz)
Power consumption (1/8 output power): 500W
CABINET
Cabinet Material: Multilayer baltic birch plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black
Grille: Iron mesh
Handles: 4 side
Pole Mount: M20 base Φ35mm
Speaker Dimension (W×H×D): 1252x556x749mm
Carton Dimension (W×H×D): 1348x655x845mm
Net Weight: 99.0kg
Shipping Weight: 107.0kg
AUDIOCENTER PD1000 4CH AMPLIFIER
R14,307.00Professional Four-Channel power amplifier
Introduction
The PD series is a professional four-channel power amplifier with high technology,
premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.
The PD series power amplifier PD1000 power ranging 400~1000W (8Ω RMS stereo), suitable for professional entertainers with limited budgets but demanding the best performance.
Features
Comprehensive Protection System
Beautiful, dynamic sound
Class H system
Unique VLTM crossover circuit design
Efficient cooling system
Long-term stability
Low cost High performance
It is widely used in Bars, Nightclubs, Multi Function Halls, Museums, Religious Places, Speeches, Weddings. Plus other Fixed Installation
and Mobile Performance Venues.
Comprehensive Protection System
Advanced Linear Limiter Protection Circuit. Reduce the gain appropriately while maintaining sound quality integrity, protecting the speaker while ensuring the audience experience is not affected, avoiding distortion or downtime.
Soft-start Protection to Prevent Current Impact
DC Protection to Effectively Protect the Speakers
When the output terminal of the power amplifier detects the DC voltage, the protection circuit will cut off the output to protect the speaker from damage, and in the meantime the protection light of the channel will light up.
Short-circuit Protection to Effectively Protect the Power Amplifier.
If the output is short-circuited (for example, a defective speaker or speaker cables are crossed), the short-circuit protection circuit will automatically protect the power amplifier. The power amplifier will not resume work until
the short-circuit problem is solved.
Thermal Protection
When the heatsink or transformer has abnormally high temperature, it will trigger
the internal thermal protection of the power amplifier. The protected channel protection light will be on and the output of the channel will be turned off. Only when back to the normal temperature range, the protection
channel will deliver output.
Beautiful, dynamic sound
Clear high frequency with rich tone
Warm and round mid frequency, full of vocal charm
Steady and powerful bass
Class H system
The Class H system makes the power amplifier realize the conversion of low power track to high power track in microseconds, ensuring accurate output power without excessive loss.
Unique VLTM crossover circuit design
VLTM crossover circuit, designed as 24dB/oct, is connected with filter, which not only provides a good drive and feedback effect, but also ensures low total power consumption. The crossover point is 6dB, no need for phase switch. It is a good choice for subwoofer and small-sized sound system.
Efficient cooling system
The PD series power amplifier uses a stepless fan system, which guides air across the amplifier and draws cold air successively through the power transformer,
fan and radiator. It is equipped with four fans to keep the transformer in a cool state.
Long-term stability
In order to ensure product quality, PD series amplifiers components are carefully selected by professional engineers and senior purchasers. All components have undergone rigorous testing before assembly. Each power amplifier is tested thoroughly by the precise audio test equipments before shipment. The PD series power amplifiers can operate continuously with long-term stability.
Low cost high performance
The PD series power amplifiers have high cost performance that is difficult to be surpassed by other suppliers.
Output power (1kHz, THD+N =1%):
4 x 1200w @ 8Ω Stereo
4 x 1850w @ 4Ω Stereo
4Ω Bridge Not Recommended
2 x 3000w @ 8Ω Bridge
4 x 1000w @ 2Ω Stereo
A-Guard Protection System:
DC protection/Short circuit protection/
Smart overheat management/Overheat
protection/Output overload protection /
Soft startup protection/Limiter protection
Working Mode: Stereo/Parallel/Bridge
Crossover (High Pass/Low Pass): 120Hz,-3dB
Input Connectors: Male XLR & Female XLR
Output Connectors: Speakon 4Pin
Input Impedance: ≥20kΩ(Balanced),≥10kΩ(Unbalanced)
Maximum Input Voltage: ≥20dBu
Sensitivity: 0.775V / 32dB / 26dB
Frequency Response (1W 8Ω stereo): 20Hz-20kHz(±1dB)
Crosstalk (1kHz, Rated power 8 Ω A weighted): ≥60dB
S/N Ratio(Rated power 8Ω, A weighted): ≥100dB
Damping Factor (1kHz & 8Ω): ≥400
Intermodulation Distortion (60Hz:7kHz=4:1,half power): ≤0.1%
THD+N (1kHz,8Ω half power A weighted): ≤0.05%
Output Circuitry: Class AB
Power Supply: 100-130V~/220-240V~(±10%,50/60Hz)
Power Consumption (1/8 output power): 780W
Rack Space: 2U
Cooling: Back to front venting, mandatory cooling
Dimension (W×H×D): 483×88×384mm
Net Weight: 27.0kg
AUDIOCENTERXLA102 DSP DUAL 10inch POWERED LINEARRA
R25,395.00Active DSP-controlled Line Array Speaker
The Audiocenter XLA 102-DSP is an active line array system. A newly designed horn and acoustic load provide high efficiency in the mid-frequency range and 90 degrees uniform horizontal coverage. Its excellent sound performance, compact size and light weight make it ideal for demanding touring events and fixed installations. The Audiocenter XLA102-DSP features two customised 1.75” HF drivers with composite diaphragms and two customised 10” LF drivers (with 2.5” voice coils). Audiocenter XLA102-DSP system can be used as a main PA system with a maximum of 16 cabinets per array. User selectable three presets (Linear, HFX, W/SUB) in Audiocenter XLA102-DSP are available for users to choose according to their needs.
The Audiocenter XLA 102-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the different requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).
FEATURES
Customised drivers
Innovative ETE™ waveguide technology for perfect frequency response and even coverage
Newly designed horn for extremely precise dispersion
High end built-in digital controller (DSP) with 96KHz sampling frequency, 2 4bit precision
Class D amplifier
Advanced cooling system
Optimised and compact cabinet design
Solid, moisture-free, CNC-machined birch plywood cabinet
Wide range of accessories for different applications
SPECIFICATIONS
Type: Active DSP-controlled full range loudspeaker
Frequency Response (-6dB anechoic chamber): 55Hz-19KHz
Maximum Calculated SPL/1M (Continuous/Peak): 132dB/138dB
LF Driver: Customized 2×1 0” driver, 2.5” voice coil
HF Driver: Customized driver, 1.0”exit, 2×1. 75”voice coil
Horizontal Coverage: 90°
Angle (Symmetrical)
Vertical Coverage Depends on the amount of the speaker and curvature of the line array
Angle (Symmetrical)
AMPLIFIER
Amplifier Circuitry Class D
Power (Peak) 2000W
Frequency Response (1W 80 2ch): 20Hz-20KHz (±0.5dB)
Intermodulation Distortion: <0.05%
Total Harmonic Distortion Protection: <0.05%
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System: Cooling with fans
DSP
Processor: 96kHz signal sampling frequency, 24bit precision
Presets: LINEAR, HFX, W/SUB
Crossover: Controlled by DSP
Output/ Input
Signal Input: 1 x Female XLR
Signal Output: 1x Male XLR
Power Input/Output: Power Connector
AC Power Operating Range: 100V-130V or 220V-240V (±10%,50/BOHz)
Cabinet
Angle Adjustment: 0.25°, 1°, 2.5°, 4°, 6°, 8°, 10°
Cabinet Material: Russian birch plywood CNC made
Cabinet Colour: Black
Dimension (WxHxD): 832x295x424mm
Net Weight: 38.0Kg
AUDIOCENTER ARTIST T45-DSP
R19,068.00T45-DSP active DSP-controlled line array loudspeaker
Artist T45-DSP adopts front bass reflex design and elaborate driver layout, the cabinet is very small and lightweight. With innovative ETE™ wave guide technology, T45-DSP delivers supreme sound performance that no need too much correction while tuning. T45-DSP is very compact, but with very high SPL and long throw, specially designed for high requirements of touring performance and and fixed installation.
Wooden cabinet+Plastic molded industrial design cabinet side cover, Class D amplifier
Innovative waveguide technology
Frequency Response(-6dB anechoic chamber): 63Hz-20KHz
Maximum Calculated SPL/1M: 136dB
LF/MF Driver: Customized Audiocenter ferrite driver, 4*5”
HF Driver: Customized Audiocenter ferrite driver, 2*1”
Power(RMS standards): 1400W
Presets: ARRAY2,ARRAY4,ARRAY6
Cabinet Angle Adjustment: 0.5 °, 1.5 °, 3 °, 5 °, 7 °, 10°
Audiocenter is a professional audio brand, originating from innovative technology which is carried through to the present day, integrating excellent global resources, blending worldwide cutting-edge technology in its designs and manufactured efficiently and intelligently in China.
Audiocenter adopts a strict and careful dedication to brand identification, core principles and is devoted to global brand distribution.
