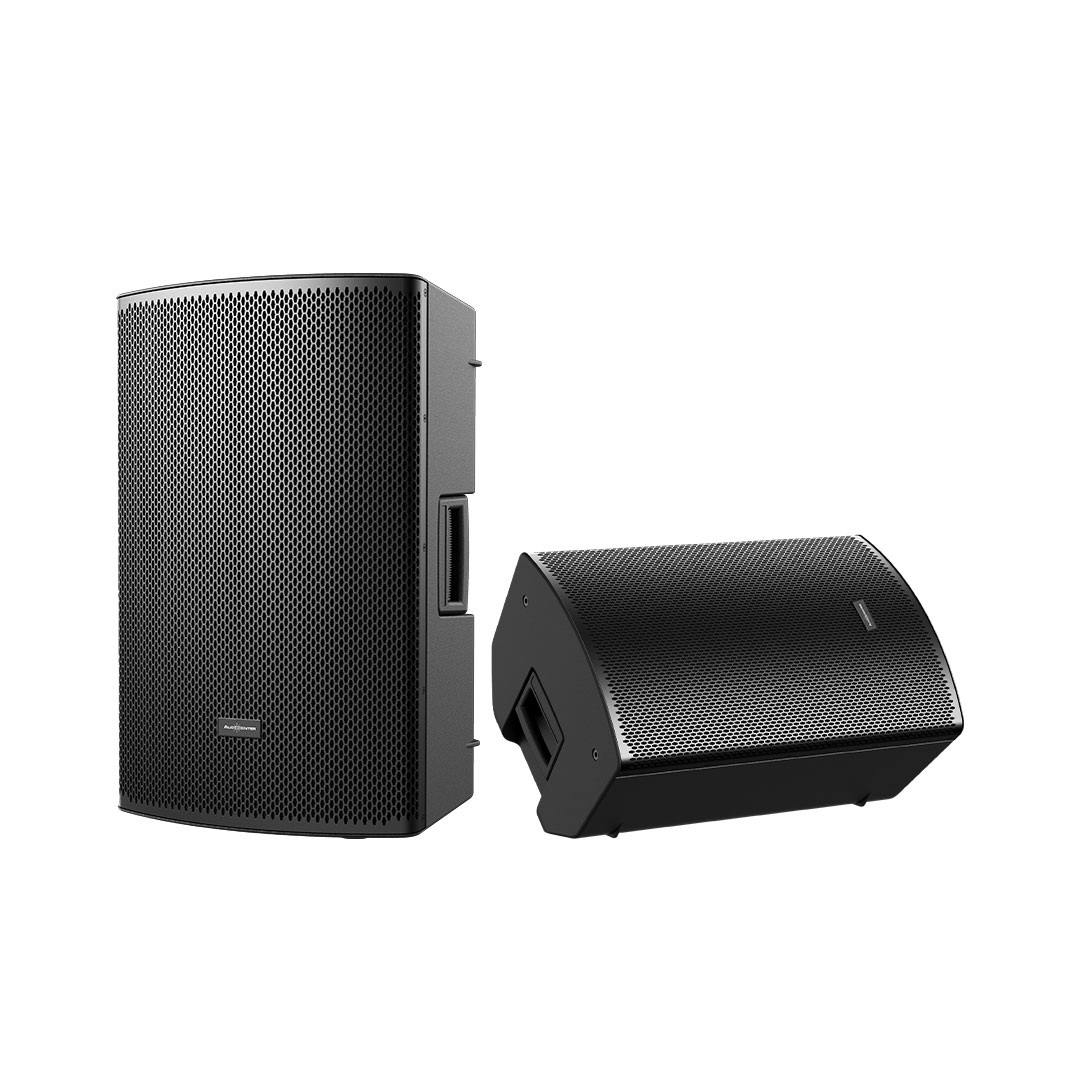

Audiocenter CA JAM PACK 15

High-Performance Portable Active Speaker Combo

The 15” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.

Simple setup
With a stylish and attractive design, the CA Jam Pack 15 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.

THEARTRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS

The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.

AUDIOCENTER CA Jam Pack 15
Package includes

2 x 15″ High-Performance Portable Active Speakers
2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.

SPECIFICATIONS

• Type Single:15” full range DSP-controlled
• Frequency Response (-10dB): 50 Hz – 20 kHz
• Horizontal Coverage (symetrical): 90 °
• Vertical Coverage: 60 °

Maximum Calculated (SPL/1M):

• Continuous 124 dB
• Program 127 dB
• Peak 130 dB

Drivers

• HF: Customised Ferrite Driver, 1.4” Voice Coil, 1.0” exit
• LF: 15” woofer, 2.0” Voice Coil

DSP

• Processor: 48 kHz signal sampling frequency
• Presets: Music, Flat and Speech

Amplifier

• Amplifier: Class D
• Power ( RMS Standard): 800 W
• Peak Power: 1600 W
• Frequency Response (1 W 8 , 2 ch): 20 Hz – 20 kHz (± 0.5 dB)
• Intermodulation Distortion: ≤0.05%
• Total Harmonic Distortion: ≤0.05%
• Cooling: Cooling with fan

Protection

• Short Circuit Protection
• Soft Startup Protection
• Over-Temperature Protection
• Signal Input Connector: 2x Female XLR (Mono jack 6.35); 1x AUX input; 1x Wireless Bluetooth
• Signal Output: Connector Male XLR LINE/MIX output
• Power Input: IEC power connector
• Working Voltage: 100-130 V ~ / 220-240 V ~ (±0%, 50/60 Hz)
• Power Consumption (1/8 Output Power): 64 W

Cabinet

• Material: New PP composite material
• Painting: Plastic cabinet
• Colour: Black
• Grille: Iron Mesh
• Handle: Top x 1, Side x 1
• Monitor Angle: Symmetrical 45 ° monitor angle
• Hanging Hardware: M8 screw
• Pole Mount: Base hole 35mm (Diameter)
• Selectable Accessory: Wall Mount Bracket, Protective Bag, Adjustable Coupling Bar
• Speaker Dimension (W x H x D): 432 x 661 x 387 mm
• Carton Dimension (W x H x D): 476 x 743 x 445 mm
• Net Weight: 17 kg
• Gross Weight: 22 kg
