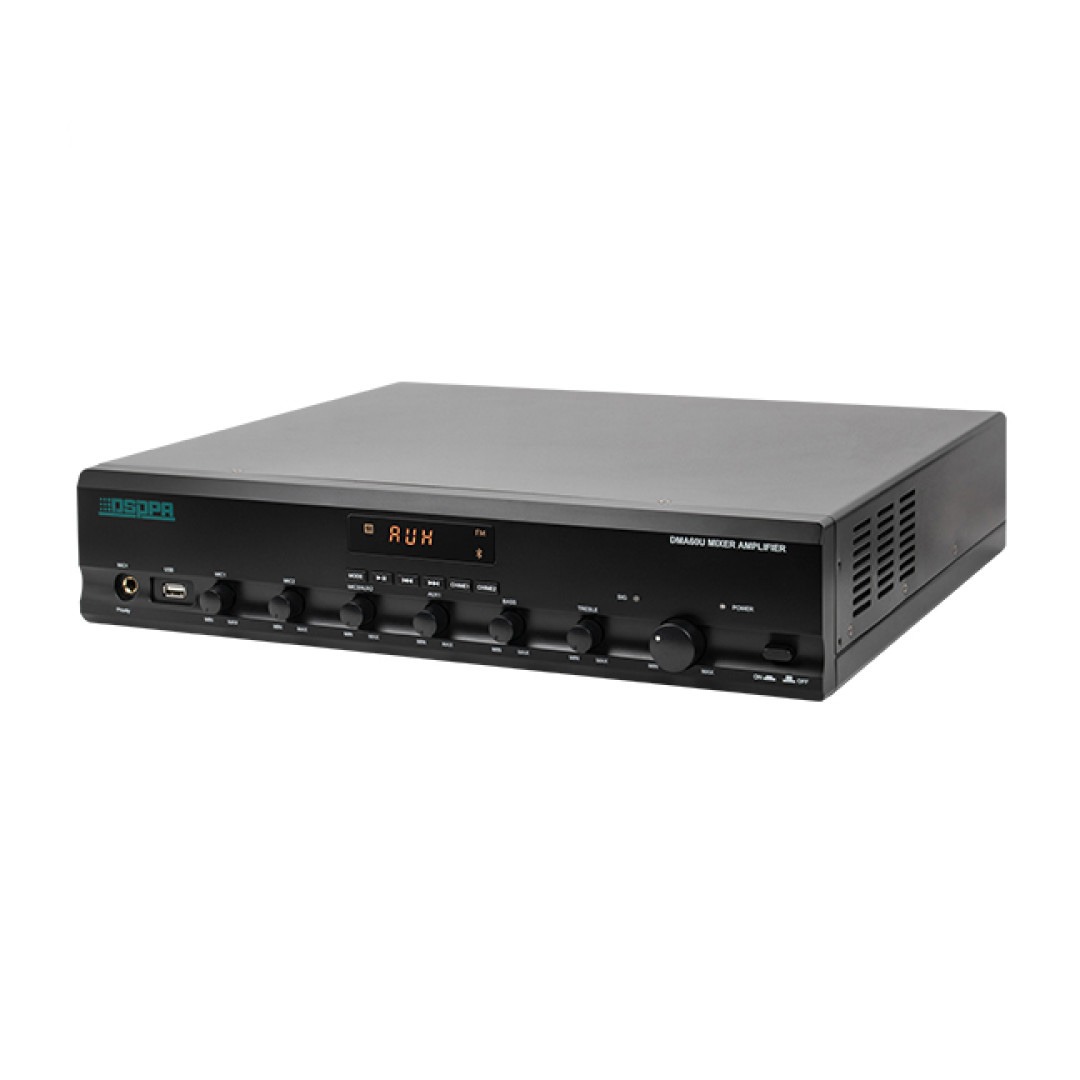

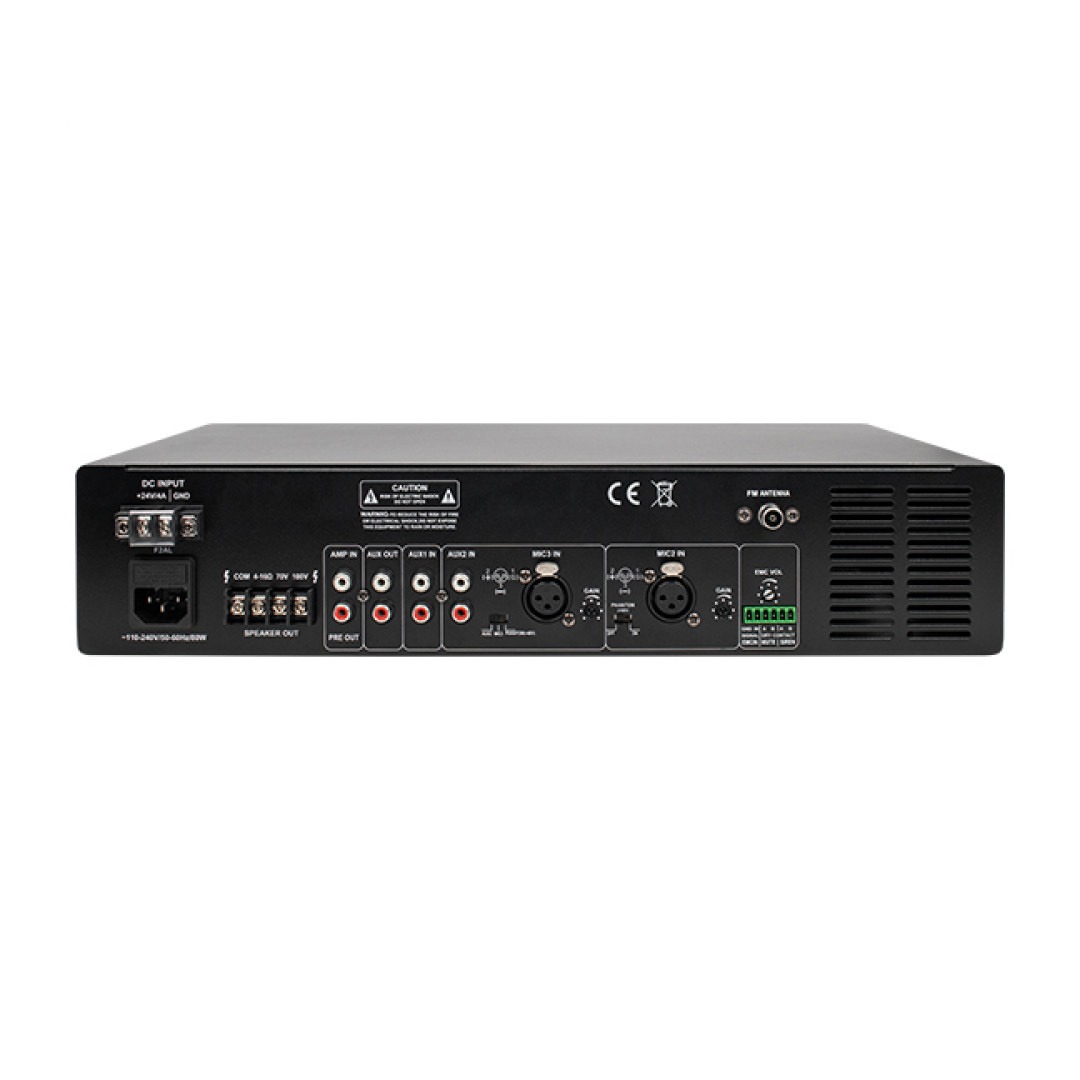

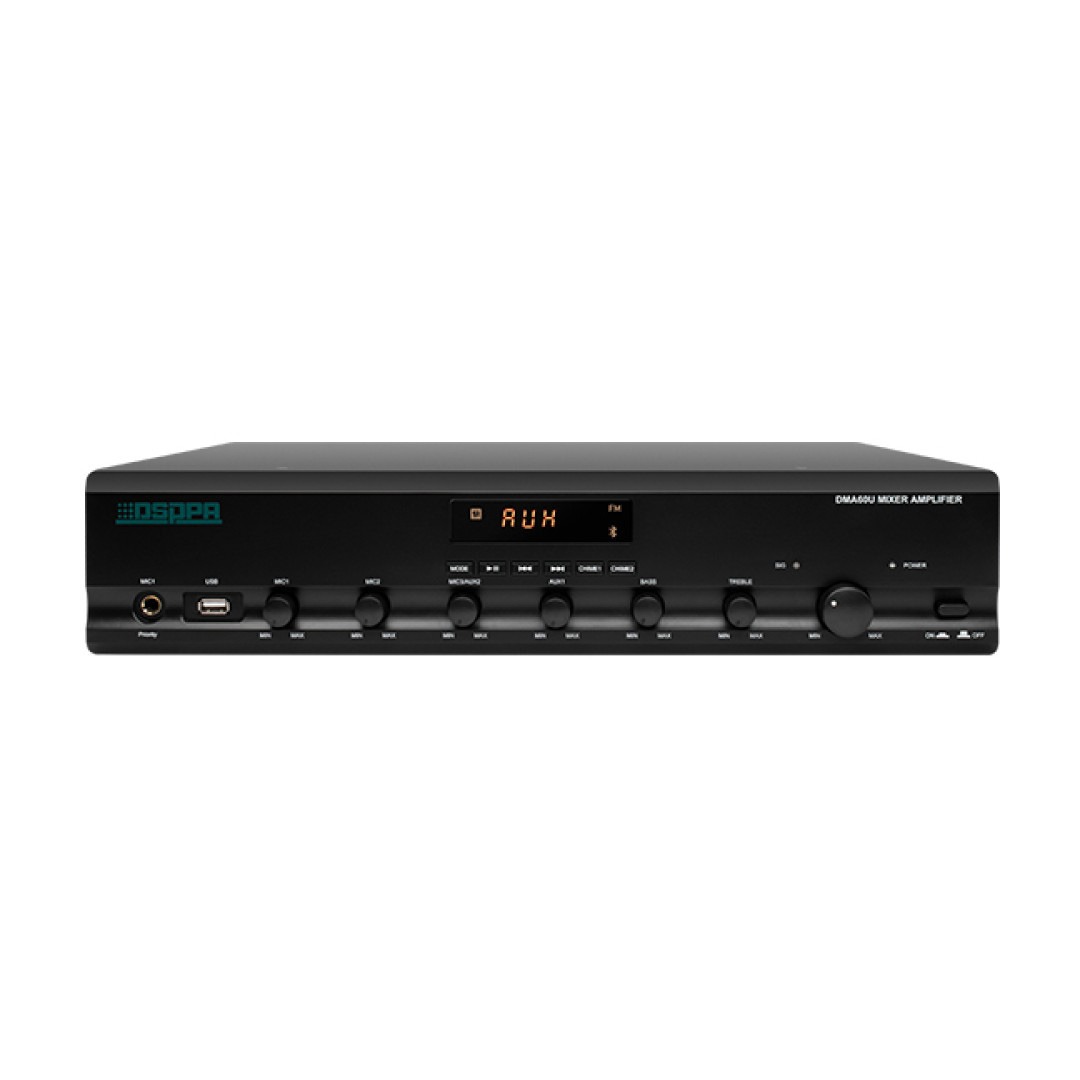

DSPPA DMA 60U – 60Watts 100v Line Mixer Amplifier

The DSPPA DMA 60U is an advanced mixer amplifier designed for commercial sound reinforcement systems. Featuring a power output of 60 watts, this amplifier efficiently drives 100v line speakers, ensuring widespread audio coverage in venues such as conference halls, retail stores, and other public spaces. One of the key features of the DSPPA DMA 60U is its built-in FM tuner, allowing users to play radio broadcasts directly through the system. This makes it an ideal choice for settings like gyms or waiting areas where background music or announcements are needed. Additionally, the amplifier is equipped with Bluetooth connectivity, providing an easy way to wirelessly stream audio content from smartphones, tablets, or other Bluetooth-enabled devices.

General
Amplifier Class D
Aux Inputs 2
Bluetooth Connectivity Yes
Bluetooth Range Class 2
Bluetooth Version 4.2
Channel Separation >65 dB
Color Black
Control Style Rotary Knob
Cooling System Fan cooled
Dimensions 430 mm × 320 mm × 88 mm
Display LCD
Dynamic Range >90 dB
Finish Black
FM Radio Yes
Front Panel Controls Volume, tone, channel select
Humidity No more than 95%
Impedance Matching 4Ω, 8Ω, 16Ω
Input Channels 5
Input Sensitivity Mic: 2.5 mV, Line: 250 mV
Installation Type Rack Mountable
LED Indicators Power, signal, clip
Line Voltage 100 V
Max Output Current 1.2 A
Microphone Inputs 2
Mixer Amplifier Yes
Model DSPPA DMA 60U
Mounting Accessory Included
Mute Function Yes
Operating Temperature 0°C to 40°C
Operational Mode Stereo
Output Connections Speakers
Output Regulation ≤ 3 dB, no load to full load
Panel Type Metal
Phantom Power Yes, 48V
Power Output 60 Watts
Power Supply AC 230V/50Hz
Priority Input 1
Protection Overload, short circuit
Radio Tuning Range 87.5 MHz – 108 MHz
Remote Control Compatible
Signal to Noise Ratio > 70 dB
Standby Power Consumption < 0.5W
Storage Temperature -20°C to 60°C
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Total Harmonic Distortion < 0.1%
Voltage Regulation Automatic
Weight 8.5 kg
Wireless Operating Distance 10 meters
Specifications
Frequency Response 50 Hz – 16 kHz
Input Impedance Mic: 600Ω, Line: 10kΩ
