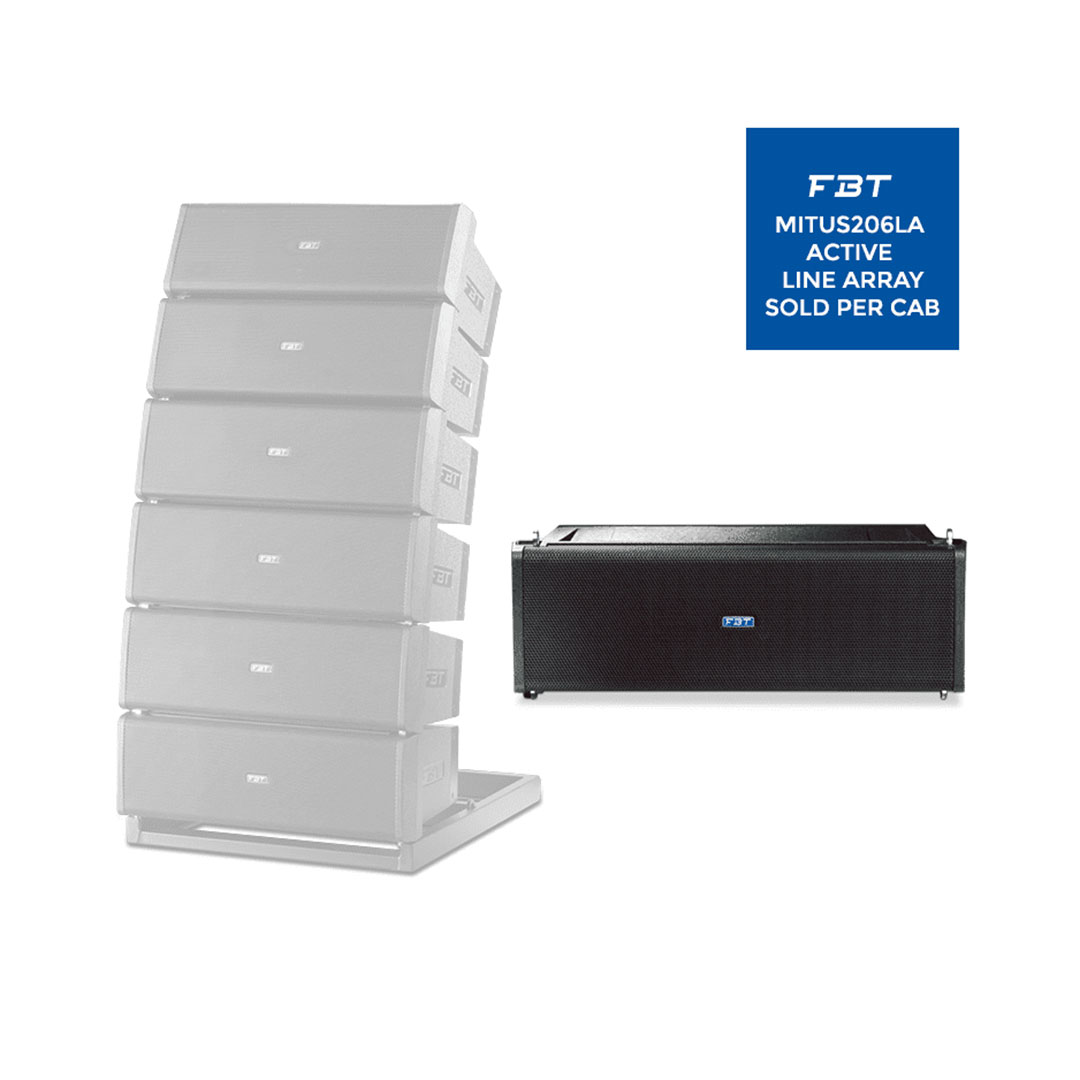

The MITUS sound reinforcement series is the result of FBT’s experience and passion for excellence. A comprehensive range of 2-way speakers for FOH applications, subwoofers, stage monitor and line arrays in passive and bi-amplified designs. Whether in live or touring applications or in permanent installations, they will be appreciated by any musicians and professionals looking for the finest sound quality. The MITUS 206LA is the flagship model of the range: a line array with 2 x 165mm woofers and a driver with 36mm exit throat coupled to a waveguide, engineered to meet the physical criteria of the ideal cylindrical wave source for the whole audio range. With a gas injection moulded polypropylene cabinet and built-in suspension system, MITUS 206LA is a great result of the mechanical and electronic engineering of FBT. Through use of the FBT aiming software program for PCs it is possible to simulate the SPL distribution and frequency response of the listening

SPECIFICATIONS:

• Configuration: 600/300w RMS
• Built-in amplifier LF/HF: 1200/600w
• Built-in amplifier peak LF/HF: 68hz – 20kHz
• Low Frequency woofer: 2x 6.5″ with 1.7″ VC
• High Frequency driver: 1x 1.4″ with 2.5″ VC
• Maximum SPL cont/peak: 125 / 134dB
• Dispersion: 100 x 10 max (Dependant upon no of elements – HxV)
• Input impedance: 22kohm
• Crossover Frequency: 1.2kHz
• AC Power requirements: 640VA
• Input connector: XLR with Link out
• Power cord: 5M PowerCon
• Net Dimension (WxHxD): 574 x 220 x 383mm
• Net Weight: 14kg
• Transport Dimension (WxHxD): 655 x 455 x 280mm
• Transport Weight: 15.7kg

FEATURES:

• Compact 2-way, bi-amplified bass-reflex design
• 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
• 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
• Frequency response from 68Hz to 20KHz
• Latest class D built-in amplifiers, 600Wrms to the LF and 300Wrms to the HF with switch mode power supply
• DSP on-board with 8 presets, +/- 5db HF level control for accurate amplitude shading

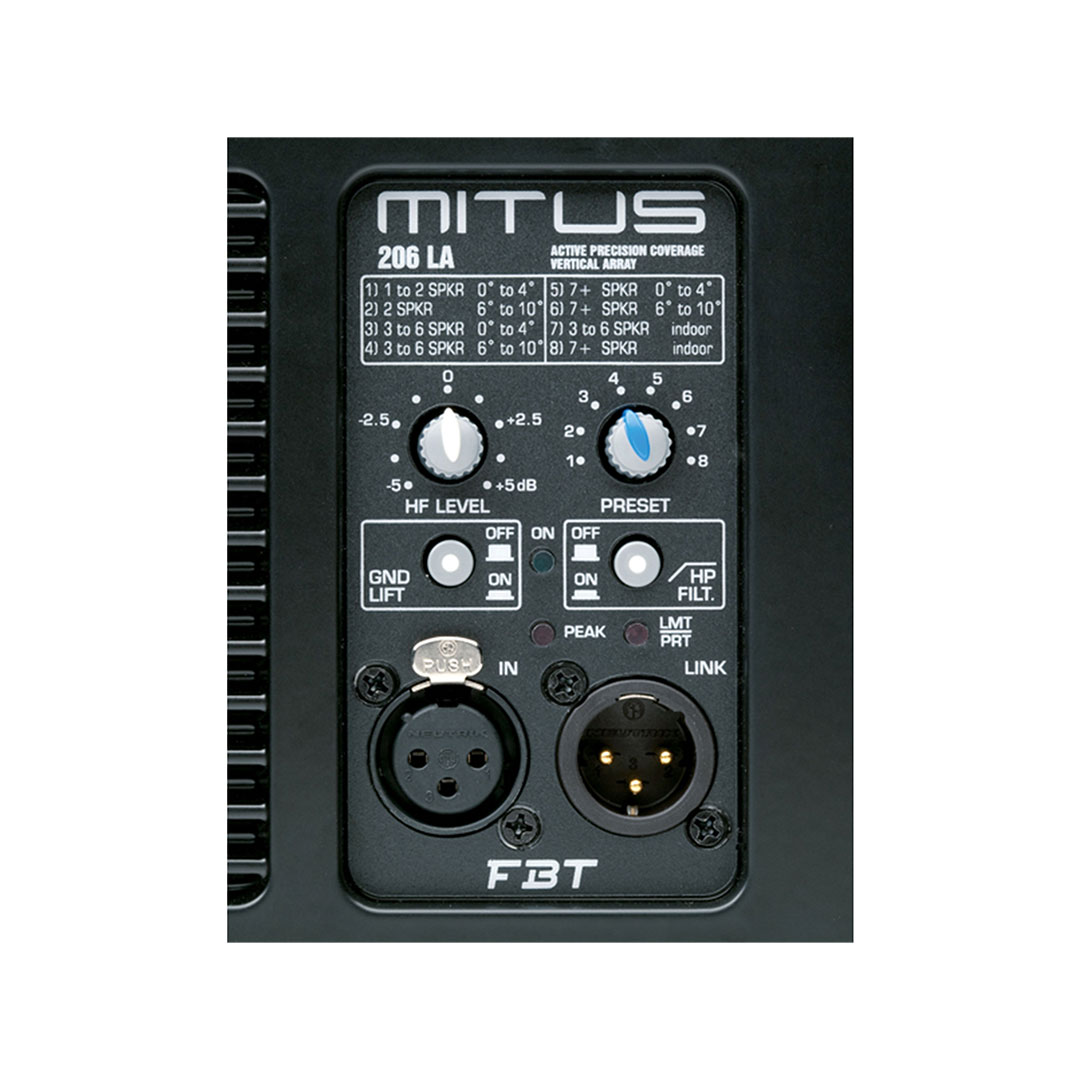

• Control panel with XLR input and link, volume, presets, HF level, HP-filter, ground-lift
• 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
• High impact polypropylene gas-injected enclosure with integrated rigging hardware adjustable with 0° to 10° angle between cabinets at 2° step
• Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage to multiple cabinet full sized line array, the MITUS 206LA maybe used also in outdoor applications where the system is not directly exposed to the elements
• Wide range of hardware accessories for flying and ground stacked configurations
• Very lightweight, only 14Kg
• MT-S206 CLUSTER BRACKET FOR 2 MITUS206 (333.240FB)
