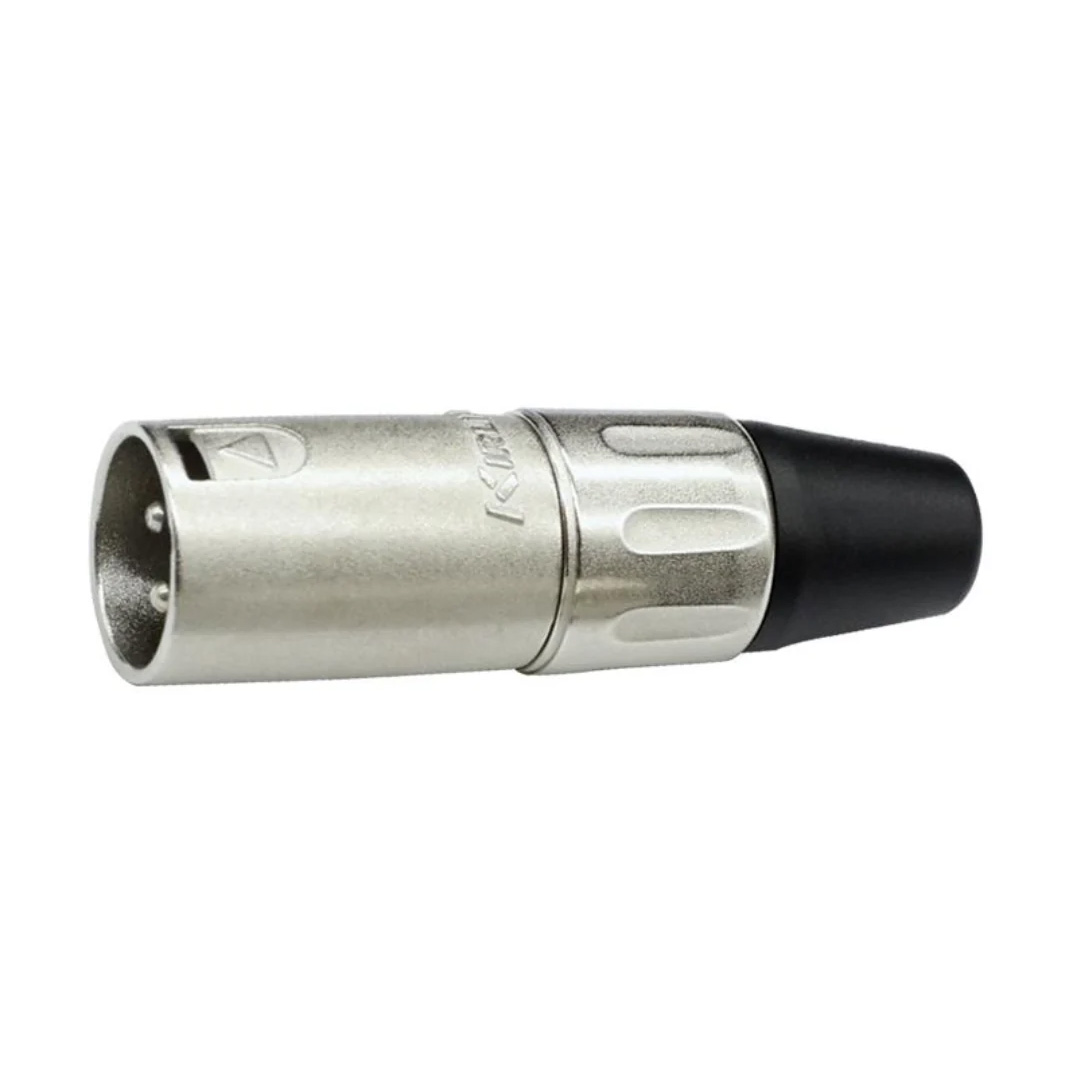

Kirlin X-3213 XLR Male Connector

Connection Type XLR

Gender – male
Capacitance between contacts – ≤ 4 pF
Contact resistance – ≤ 3 mΩ
Dielectric strength – 1,5 kVdc
Insulation resistance – >10GΩ (initial)
Rated current per contact – 16 A
Rated voltage – <50V
Cable OD. – 6 -8 mm
Lifetime – >1000 mating cycles
Wiresize – max. 2.5 mm²(max. 14 AWG)
Temperature range – -30 °C to +80 °C
