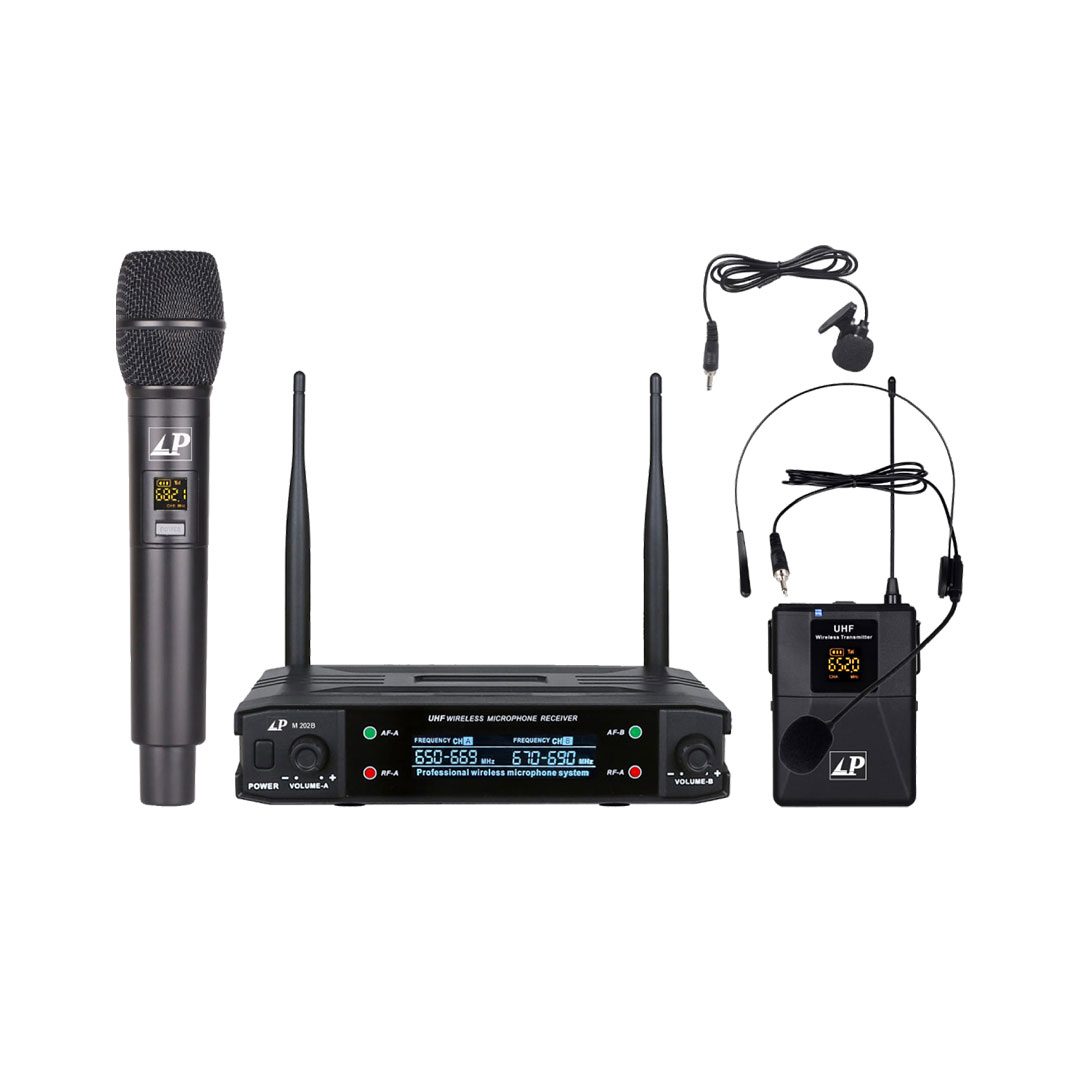

LANE M-202B

Wireless microphone set

lapel, headset and handheld with a receiver

Specifications

• Frequency Range: 500Mhz – 980Mhz
• Modulation Mode:  Digital modulation PSK
• Audio Sampling Rate: 48KHz
• Channel Spacing > 300KHz
• Audio Signal to Noise Ratio: > 96dB
• Frequency Response: 30Hz – 20KHz
• Oscillation Mode: VCO oscillation inside the chip
• Transmit power: 10mW
• Maximum Input Sound Pressure: 100dB
• Cartridge: Dynamic
• Battery Requirement:  AA 1.5V (x2)
• Battery Life: +/- 6 Hours
• Antenna:  BNC/50 Ω
• Sensitivity: -96dBm
• Harmonic Interference Ratio: >80dB
• False Interference Ratio: >70dB
• Power: DC 12v /500mA
• Power Consumption: <2W
• Audio Output: Mixed unbalanced output socket
• Receiver distance: 50 Meters (may vary based on environment)
