Mackie Hm-800 8Ch Headphone Amp

Perfect for studios, practice spaces, quiet stages, and more, the HM Series offers everything you need whether it is just splitting a single signal to your band, or more complex headphone distribution.

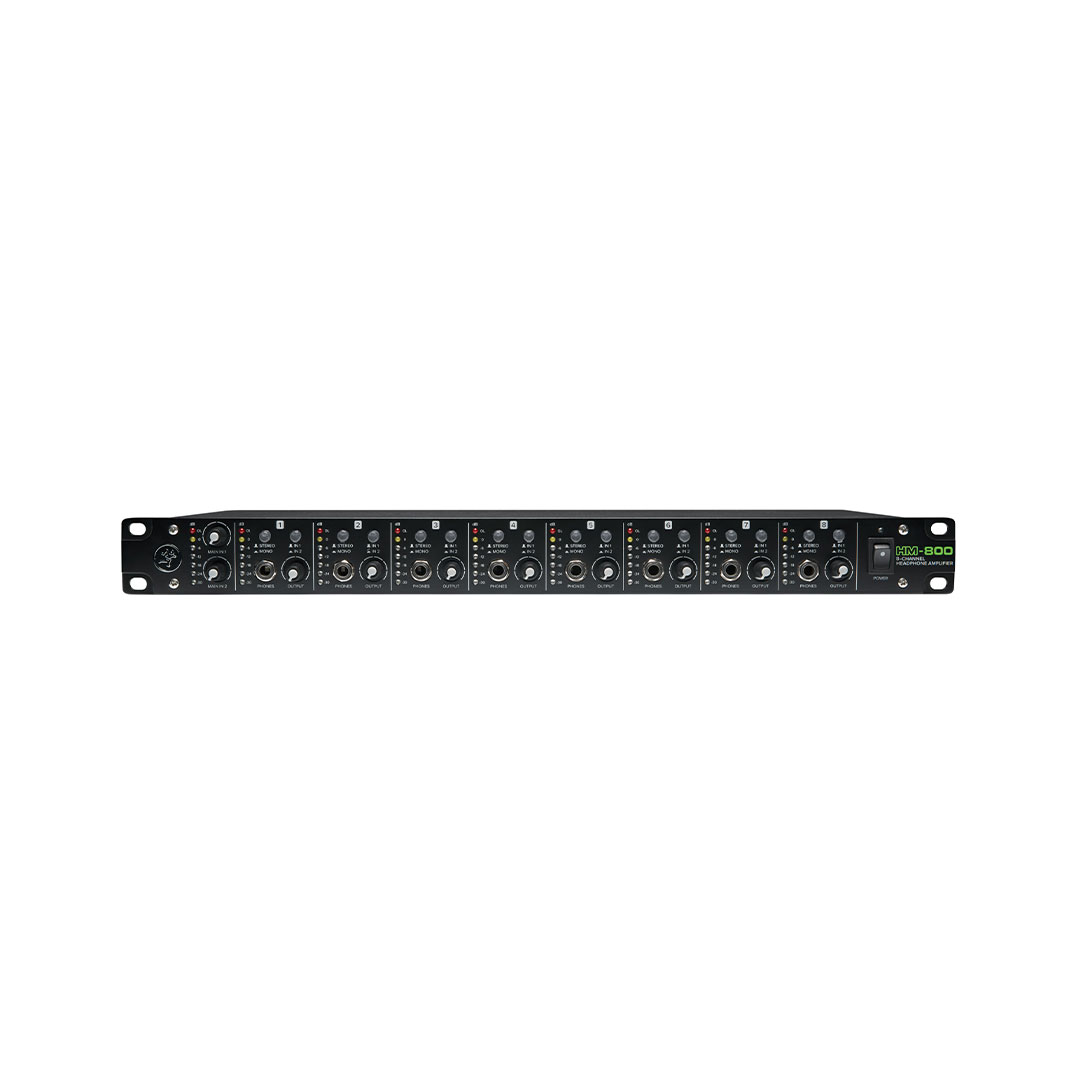

The 19” rackmount HM-800 8-Channel Headphone Amplifier offers up to 10 available mixes with a total of 16 headphone outputs. Perfect for professional applications including studios, Houses of Worship, practice spaces, and more. Featuring 2 discrete main inputs with level control plus stereo outs, aux inputs per channel.

• 2 discrete main stereo inputs with separate level control plus stereo outputs
• 7-segment LED metering per channel plus Main
• 2 headphone outputs per channel
• 8 independent Aux inputs for up to 8 individual stereo mixes
• Input Select and Stereo/Mono switches per channel
• 16 total headphone outputs
• Built-Like-A-Tank™ construction

Input Channels: 2 x stereo main, 8 x aux
Output Channels: 8 stereo channels
Analog Inputs: 4 x 1/4″ (2 x stereo), 8 x 1/4″ (aux in)

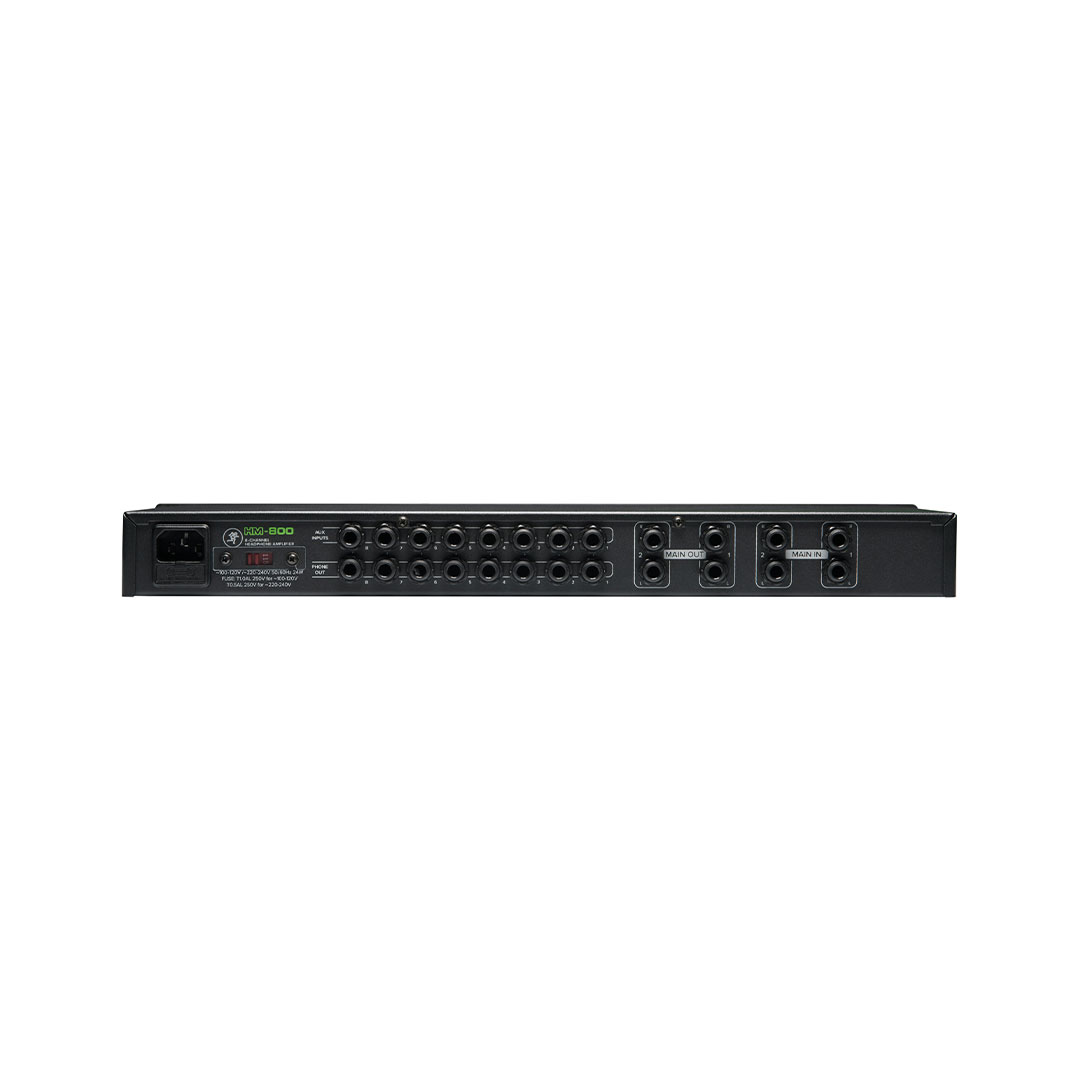

Analog Outputs: 4 x 1/4″ (2 x stereo), 16 x 1/4″ TRS (8 front, 8 rear)
Controls per Channel: Output per Channel, Main 1 Volume, Main 2 Volume Form Factor: 1U Rackmount
Power Supply: Standard IEC AC cable
Height: 1.8″
Depth: 8.8″
Width: 19″
Weight: 8 lbs.
